Day 36 tons of processing wheat milling equipment，Stainless steel material,model: LM-36T/LM-20T

Remark :

Technical for cleaning system:

Two sieves, Two beating, One removing stone, One washing and Two magnetic selecting.

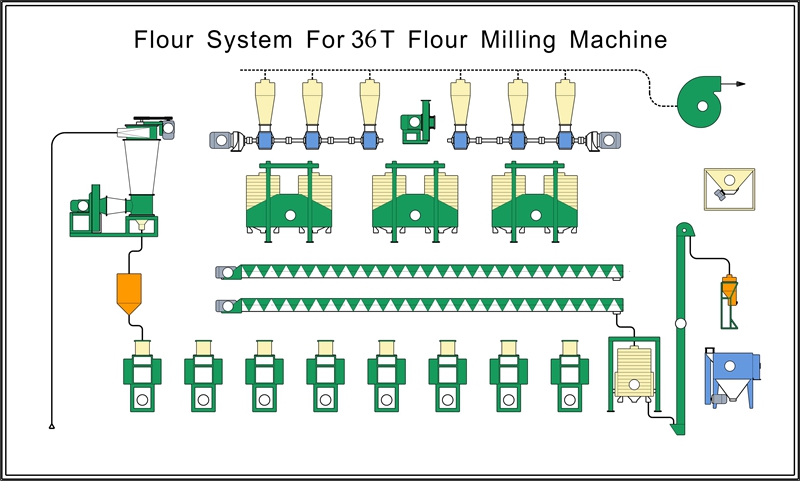

Technical for flour system:

eight roller mills , three FSFJ2×12×83 double-bin sifter sieves, one FSFJ1*83 single sifter sieve make up of 4B,3Mand 1 bran brusher.

The parameter for 36T/D wheat flour milling machinery

1. Total length of the roller: 3200mm

2. Capacity(wheat/24h): 36T/24h

3. Flour extraction: to produce standard flour:75-82%

to produce grade 2 flour:70-75%

to produce grade 1 flour: 60-65%

4. Flour quality: Obey the people's republic of china's GB1355-88 standard

5. Power supply: about 103KW.

6. Total weight of the equipment: 26T

7. Dimension of the factory: 24000×7000×7500mm (tripod structure)

8. Container:40'× 2

Our High-quality rice milling Unit include a series of continuous production sets that work from cleaning,husking,rice and paddy separation,polishing

of rice,grading.The whole set is composed lf some main equipment such

as pre-cleaner,de-stoner,paddy husker,paddy separator,

emery roll whitener,air-jetting iron roll whitener,white rice plansifter,

water mist rice polisher,color sorter,and some other assistant device such as magnetic separator,winnowing,transportation, electric control,

end product warehouse and other vacuum packing machine,

rice husk adsorption,rice bran system.
